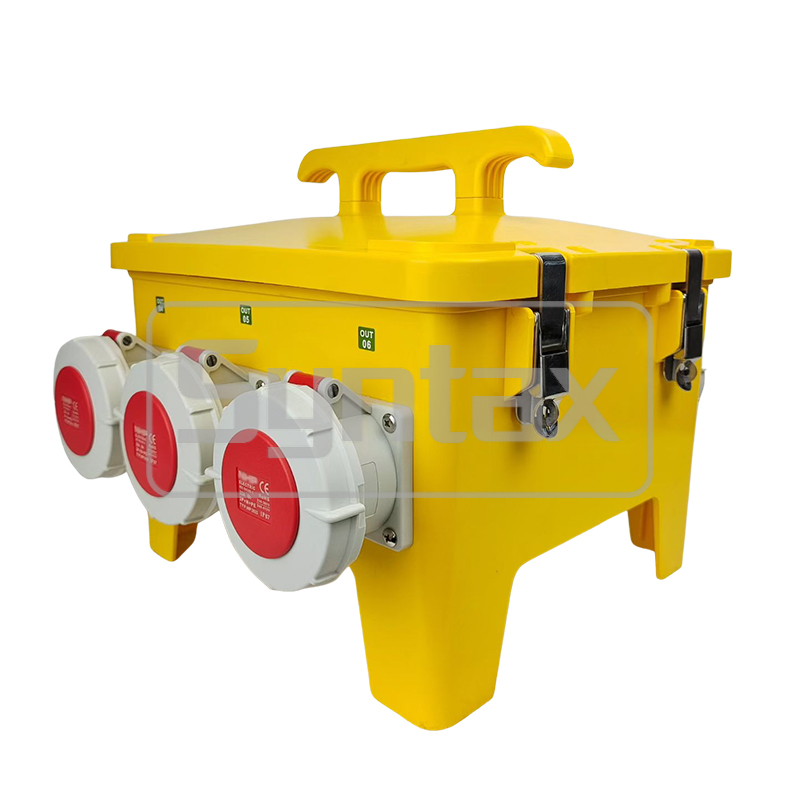

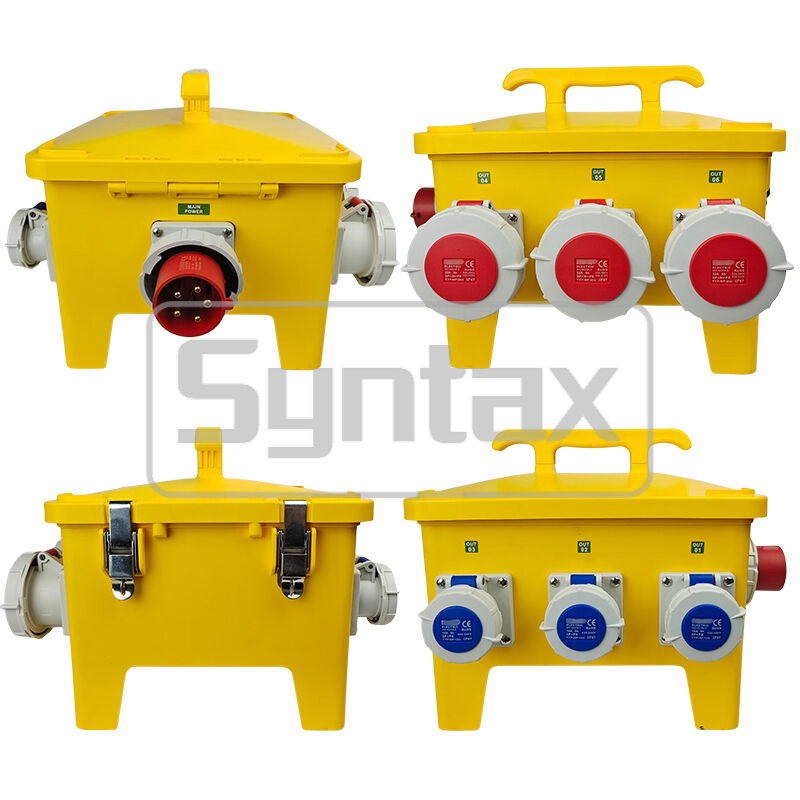

IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction

IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction
IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction
Basisinformatie
Plaats van herkomst: China
Merknaam: Syntax
Certificering: UL
Modelnummer: MP24
Min. bestelaantal: 1 Instellen
Verpakking Details: Verpakt in kartonnen doos
Levertijd: 15 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 3000 sets/maand
Beste prijs Contact nu
Gedetailleerde informatie
Materiaal: PC (polycarbonaathars, het beste materiaal van kunststof) Polen: 24 manieren
Dimensie: 370*340*330 mm IP-beschermingspercentage: IP67 Waterdicht
Kleur: Geel
Markeren:

IP67 waterproof electrical spider box

,

63A 5P portable power distribution board

,

polycarbonate resin construction spider box

Productomschrijving

Syntax MP24 IP67 Waterproof Portable Power Distribution Boards 63A/5P With 1.0m Rubber Cable Residual Protected 37*34*33CM
Professional IP67 waterproof portable power distribution board designed for demanding industrial applications with comprehensive safety protection.
Technical Specifications
Attribute Value
Box MP24 Portable Distribution Box IP67
Color Black
Dimension of Box 370*340*330mm

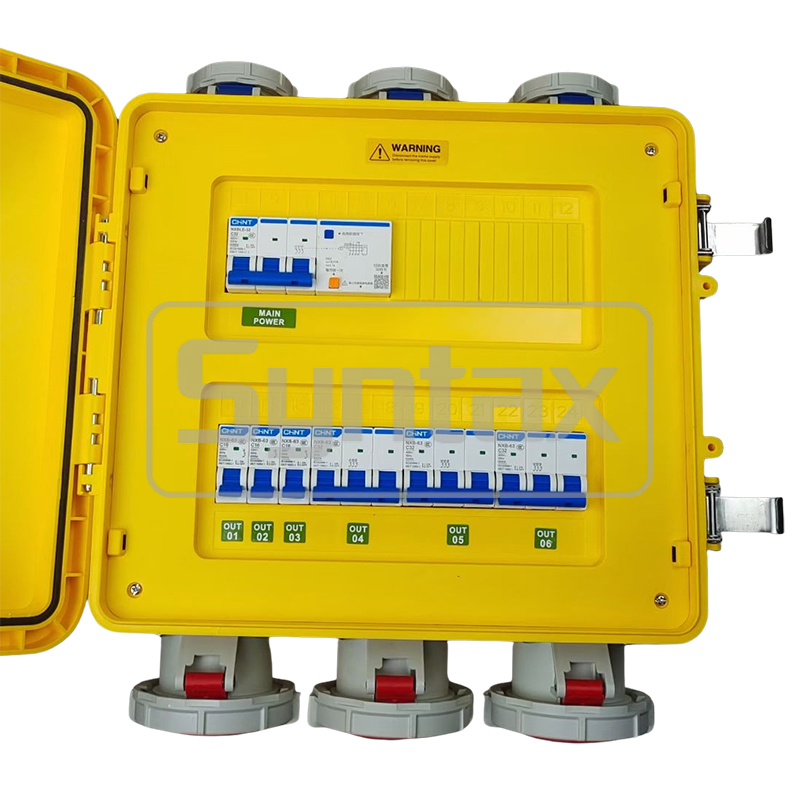

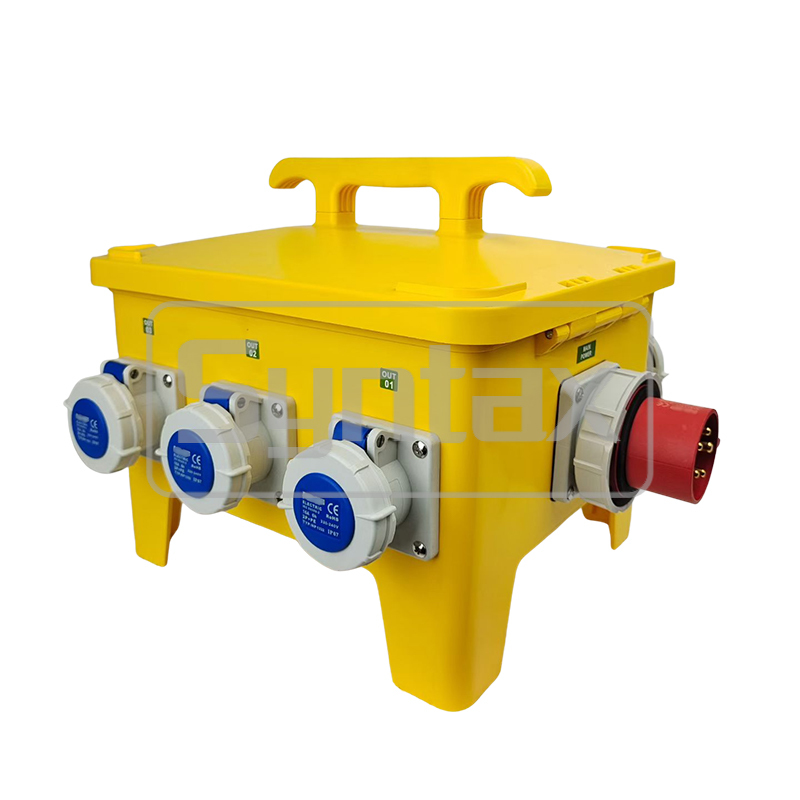

Incoming Main Switch 1 * 5P 63A 400V IP67 Plug with 1.0m 5*16mm² Flexible Rubber Cable, protected by 1 * 4P 63A 30mA RCCB

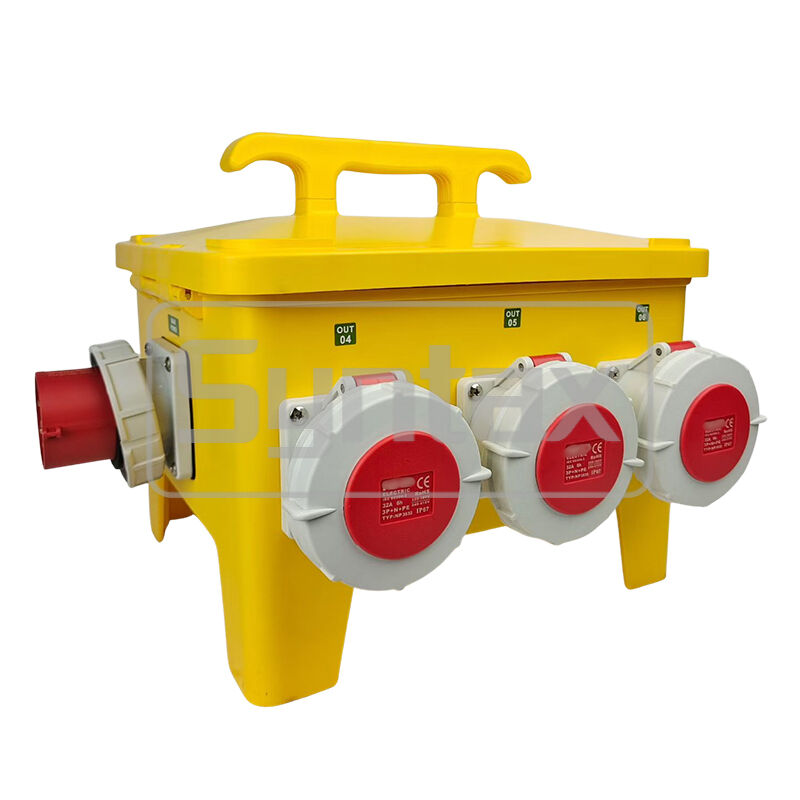

Outgoing Sockets 1-3 Breakers 3 * 5P 32A 400V IP67 Panel Mounted Sockets, protected by 3 * 3P 32A MCBs

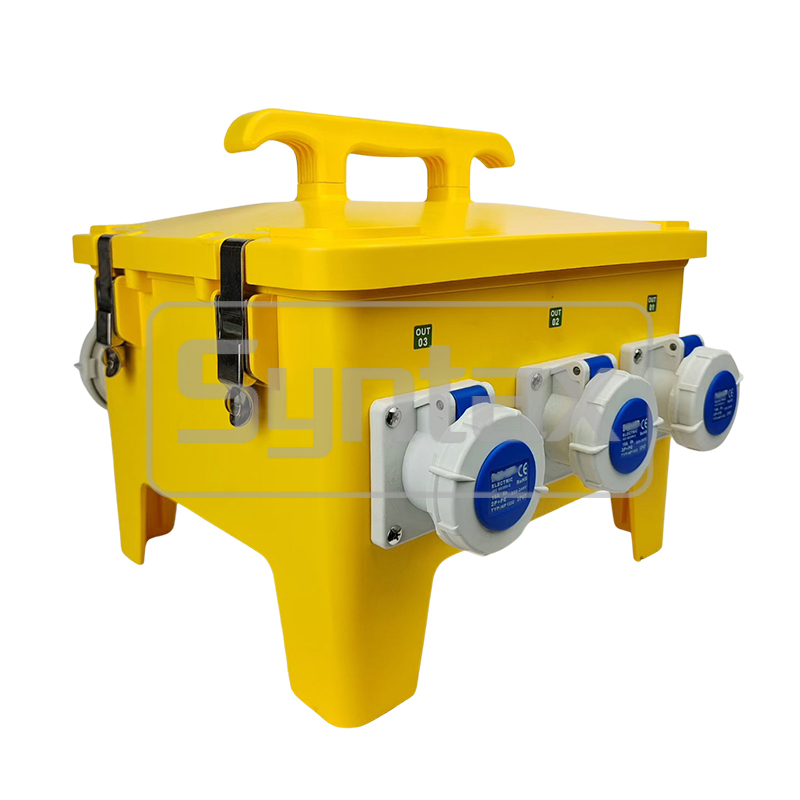

Outgoing Sockets 4-6 Breakers 3 * 3P 16A 220V IP44 Panel Mounted Sockets, protected by 3 * 1P 16A MCBs
Brands Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT
Product Drawings
Syntax MP24 Portable Power Distribution Board technical drawing Dimension drawing of empty MP24 distribution box
Key Features
  • Designed based on EN 60439-4, IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Yellow or Black colors
  • Material: PC (Polycarbonate Resin - premium plastic material)

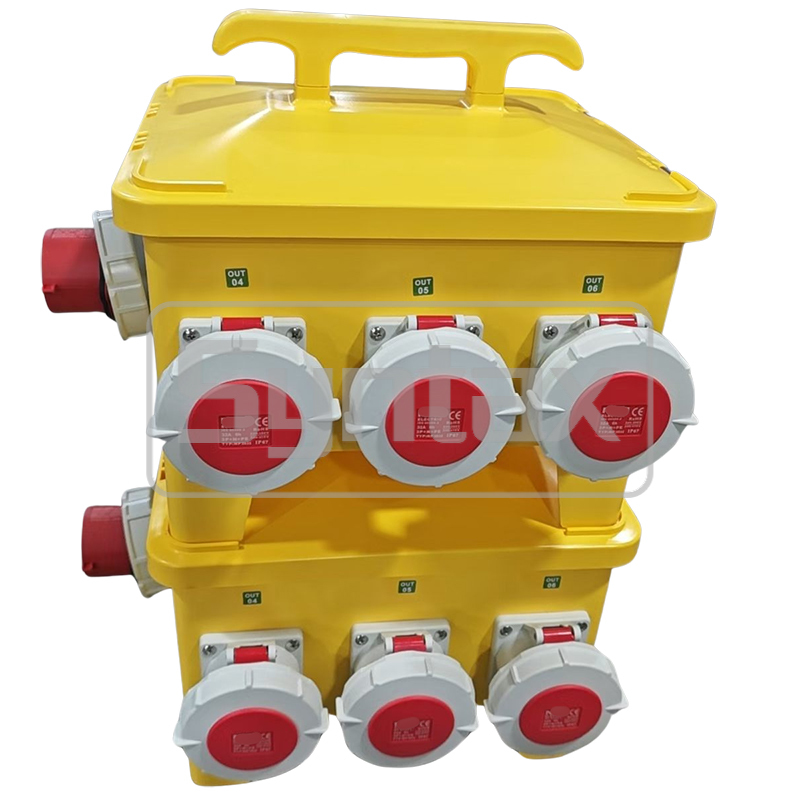

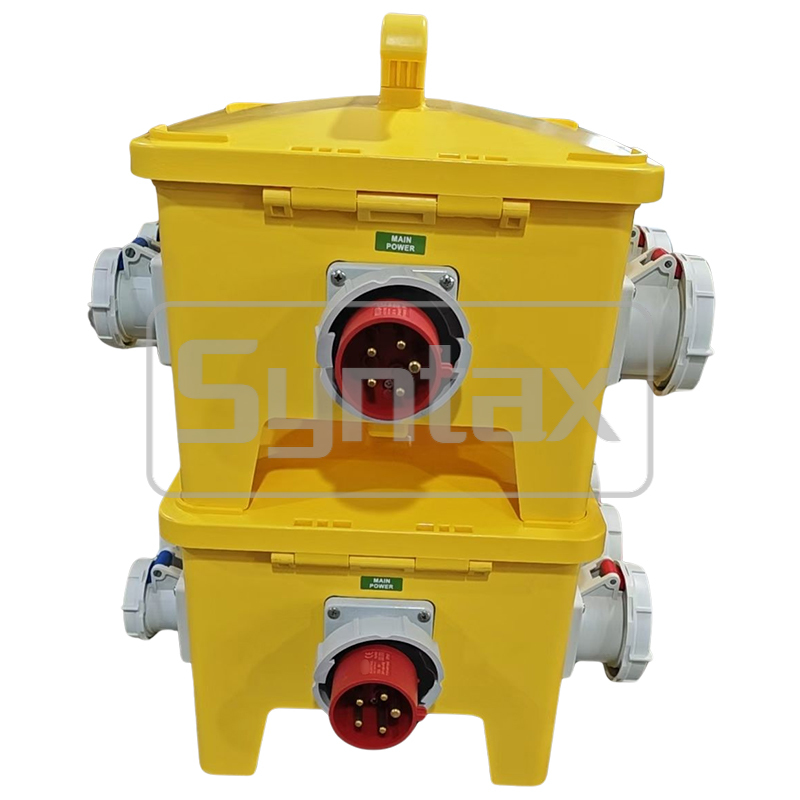

  • Stackable design for easier storage and daisy chaining
  • Operating Temperature: -20℃ to +75℃
  • Dimension: 370mm * 340mm * 330mm
Product Advantages
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusability of all components
  • Suitable for indoor and outdoor use
  • Robust and durable construction
  • Easy handling and system management
  • Integrated feet for secure stacking
  • 24 Months Warranty on all parts and manufacturing defects
Detailed Specification
This CEE standard portable power distribution board is rated 63 AMP, 400VAC, IP67 Waterproof for use at Live Events, Sporting Events, Film & TV applications. The incoming features a 63A/5P 400V IP67 Plug with 1.0 meters flexible 5*16mm² rubber cable, protected by a 4P 63A 30mA RCD. Outgoing sockets include 3 * 32A/5P 400V IP67 panel mounted sockets protected by 3 * 3P 32A MCBs, and 3 * 16A/3P 220V IP67 sockets protected by 3 * 1P 16A MCBs. All industrial plugs and sockets are from PowerSyntax brand, while breakers are from CHINT brand. The box is constructed from PC material with IP67 waterproof rating, making it ideal for stage events. Custom power distribution boxes can be built to order.
Applications
  • Tunnel construction and drilling rigs
  • Gravel pits, quarries, and strip mining
  • Marine, railway, and military applications
  • Industrial and construction sites
  • Event technology and large-scale events
  • Chemical plants and airports
  • Container terminals and harbor crane connections
  • Urban rail transit and nuclear power stations
  • Wind power stations, ports, docks, and airports
  • Metal processing plants and automotive works
  • 4G/5G communication equipment and stations
  • Automated production lines for electronics and food
  • Concerts, stadiums, and presentation venues
  • Hospitals, schools, banks, and shopping malls
  • Electric vehicle charging systems
Custom Solutions
OEM and ODM services are available. If standard solutions do not meet your application requirements, customer-specific solutions can be developed upon request.
